Using artifi cial intelligence for anonymous detection of parking space

RECENTLY, THE TOPIC OF PARKING HAS BECOME ONE OF THE MAJOR ISSUES AND MOST DISCUSSED PROBLEM BOTH AMONG THE DRIVERS AND REPRESENTATIVES OF MOST EUROPEAN CITIES, WHO ARE BEING FORCED TO FIND THE BEST AND MOST EFFICIENT PARKING MANAGEMENT SOLUTION, WHICH WILL COMPLY WITH THE MODERN SMART CITY CONCEPT. ONE OF THE MOST ADVANCED SOLUTIONS ON THE MARKET IS THE PARKING DETECTION SYSTEM, I.E. USING ARTIFICIAL INTELLIGENCE TO MONITOR THE OCCUPANCY OF A PARKING LOT IN REAL TIME, WHICH CAN EFFECTIVELY HELP TO CONTROL AND MANAGE LARGE PARKING AREAS AS WELL AS SMALL ON-STREET PARKING ZONES – SIMPLY AND SAFELY.

city:one 2017-11-16 10:15 Mobility

: Benefi ts of Parking Detection system for your Smart City

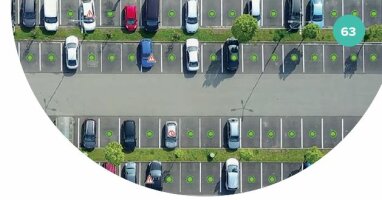

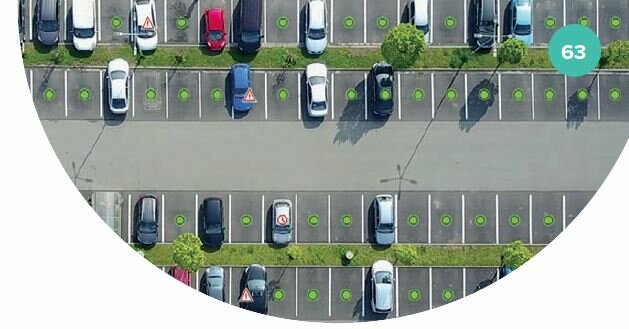

Anonymous detection of parking space occupancy by smart cameras and Artificial Intelligence processing image data ensures reliable evaluation of the situation in both
on-street and off-street parking. In case of appropriate deployment, one camera can cover up to 400 parking spaces. With such coverage, PD system saves up to 90%
HW equipment required for the installation (in comparison to other smart parking technologies currently available on the market). Parking Detection system brings you real time occupancy data of every parking space, enables to measure daily parking time or to check payment discipline (detection of overtimes) thanks to the possibility of connection with payment machines. Another advantage is that the system can be directly connected to LED panels navigating to available parking spaces.

: Easy to install, easy to manage

Since the whole Parking Detection system set includes only smart cameras and a collection unit (PD Gateway), installing the system is up to 10 times faster compared to
other technologies based on in-ground magnetic sensors mounted to the ground in each parking space. Installing these sensors is highly time and cost demanding.

The cameras can be placed on the walls of nearby buildings, poles or public lights. Each camera is connected to the PD Gateway that collects anonymized input image
data. The data is not stored, but sent through a three-level encryption to the central cloud server in real-time, where it is further evaluated using artificial intelligence. The system provides the highest level of security due to the input data anonymization and multiple encryption of communication channels. One PD Gateway controls 3 cable cameras and up to 10 wireless cameras at the same time. However, one can use an already existing camera network. In both cases, all that is required is only power supply and a stable internet connection with a min. speed of 40 kbit/s – the Gateway can be connected to the internet using one of the following three options: WIFI, ethernet cable or through an integrated LTE modem.

The management and supervision of the entire parking lot is controlled through an intuitive PD Management System interface that allows you to remotely manage
individual cameras and parking spaces, define your own parking rules and create advanced statistics, financial and service reports.

: Major benefi t? Cost eff ectiveness!

With the deployment of Parking Detection system in an average off - street parking lot with 100 parking spaces, one can save costs up to EUR 7,700 per year. An average price per one space is EUR 77, which is only a third of the average price of installing one sensor into the ground for one parking space (approx. EUR 230). Moreover, the
price per parking space with Parking Detection system includes also access to the PD Management system with full functionality, automated 24/7 supervision of the system functionality and the possibility of connecting and implementing the system into higher units.

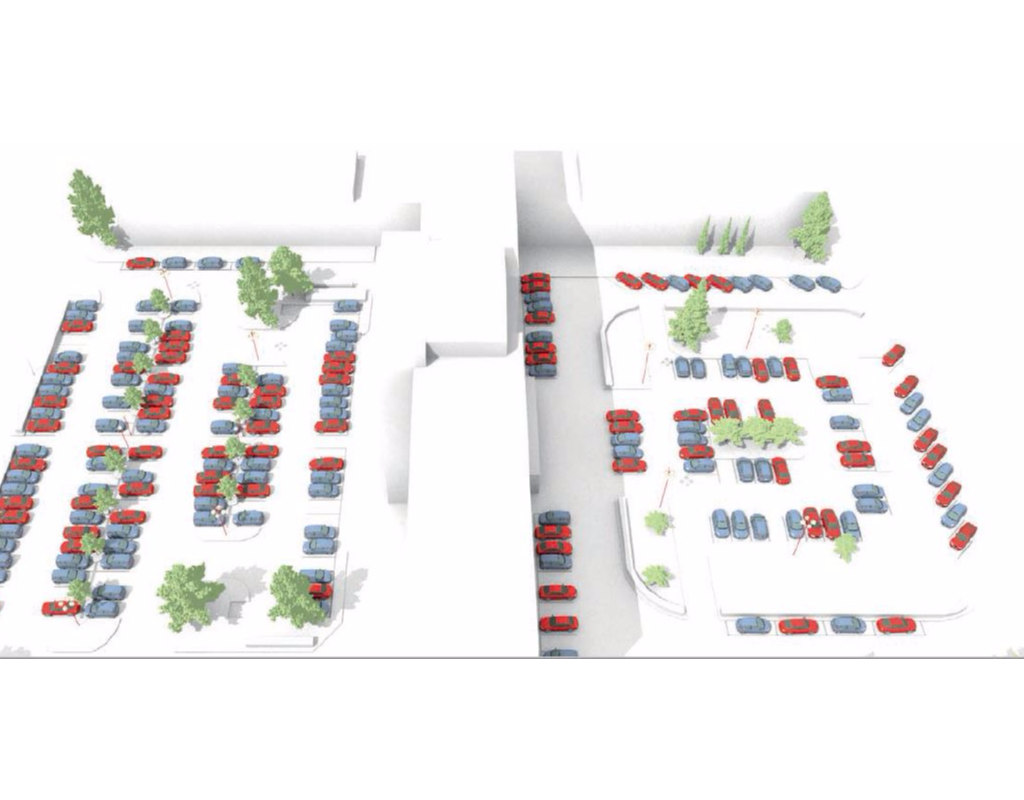

Would you like to get a 3D model of your parking area that suits your needs and have the Parking Detection system deployment designed? Visit ww.parkingdetection.com for more information or send a direct request to info@parkingdetection.com.

Top TEN of Parking Detection System

1. Real time occupancy data
2. Cloud based solution
3. High effi ciency: 1 camera = 400 parking spaces
4. Anonymity and security – no image data stored
5. Easy installation, simple maintenance
6. Accuracy higher than 99.5 %
7. Cost eff ective solution
8. Intuitive management system
9. Possibility to connect into existing camera network
10. Great potential for further use – surveillance system, passenger counting, detection without marked parking spaces
